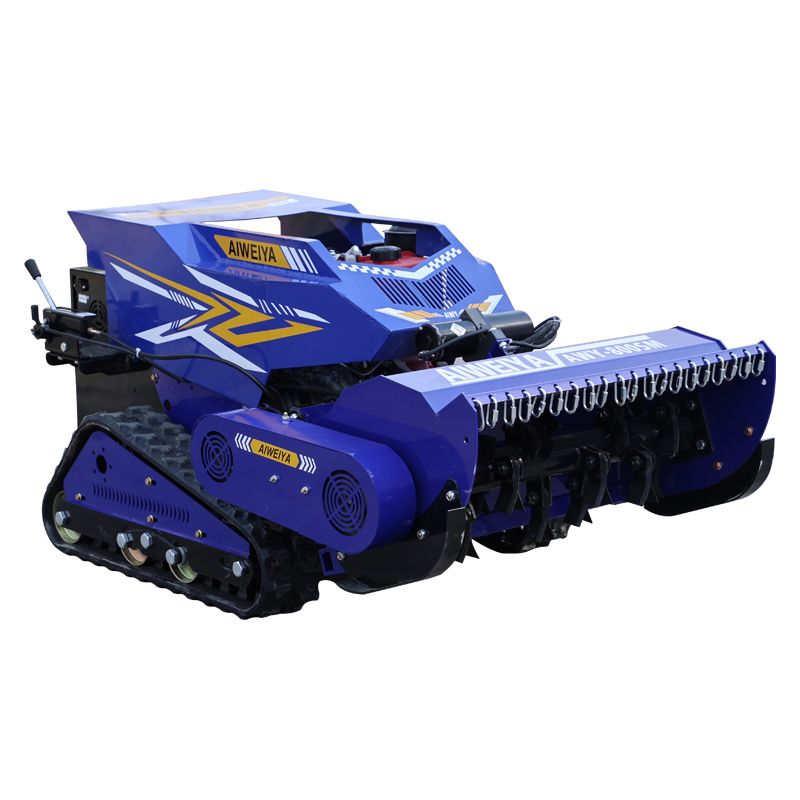

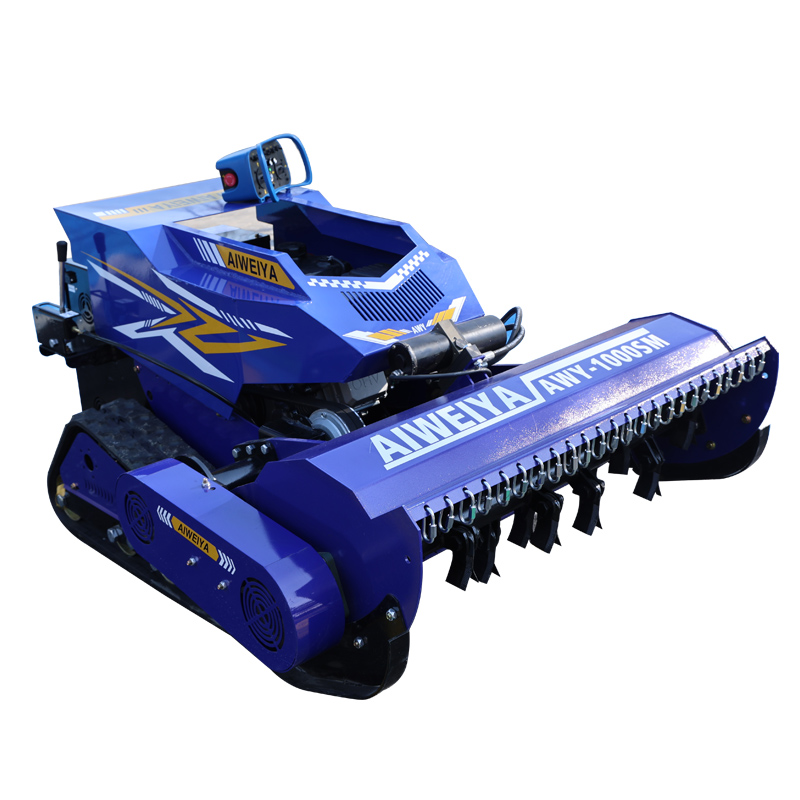

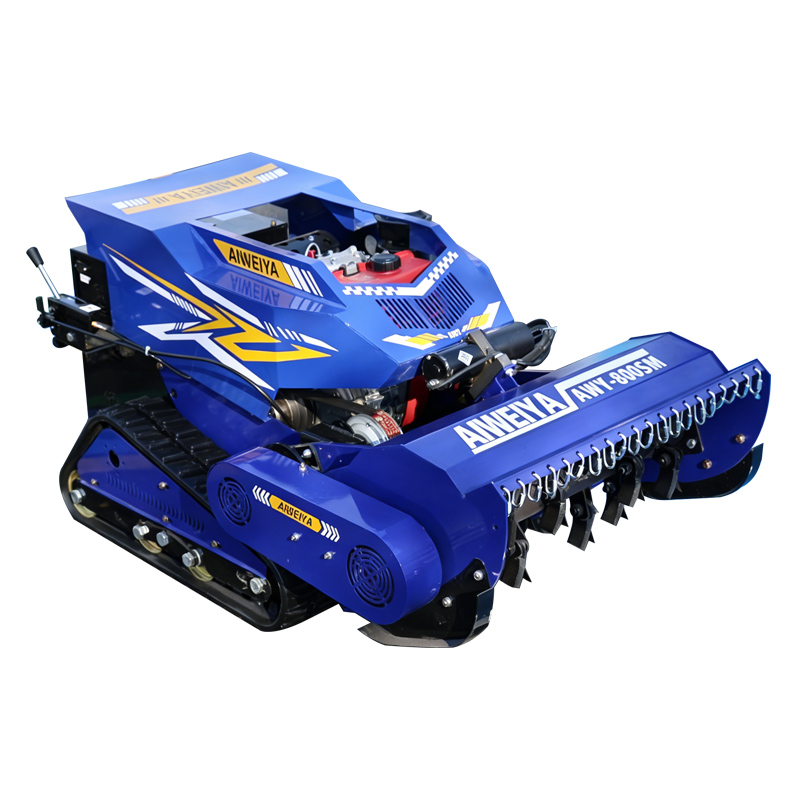

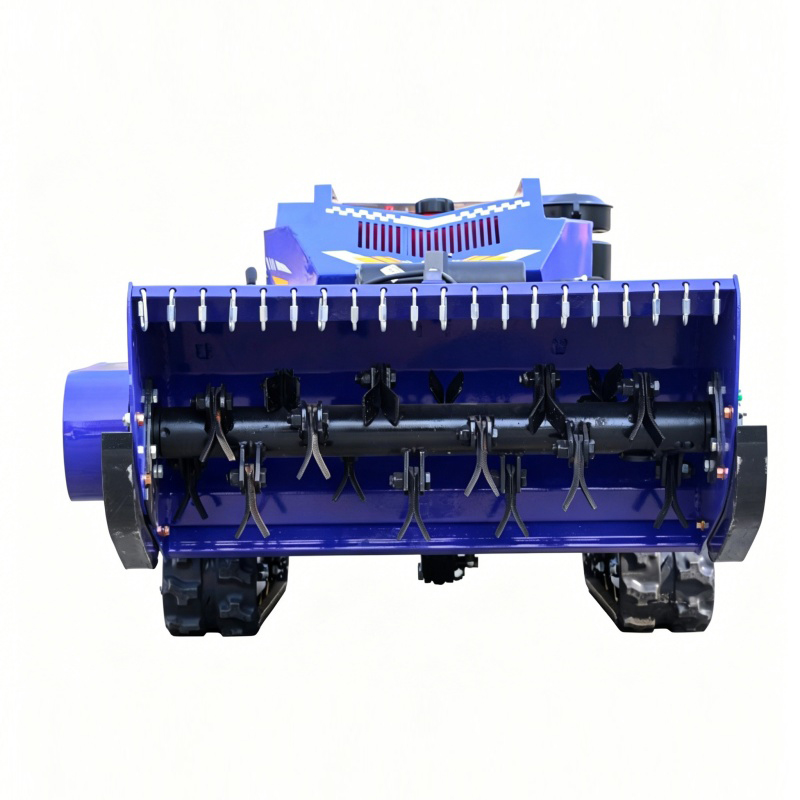

The AWY-SM Series is a remote control crawler flail mower built for brush, overgrown rough land, land clearing, and solar farm orchard environments.
The AWY-SM Series is a remote control crawler flail mower built for brush, overgrown rough land, land clearing, and solar farm orchard environments. With hydraulic lifting and strong terrain adaptability, it is a good choice for demanding vegetation control and rough ground maintenance.
.jpg)
Remote control crawler flail mower for rough and overgrown terrain

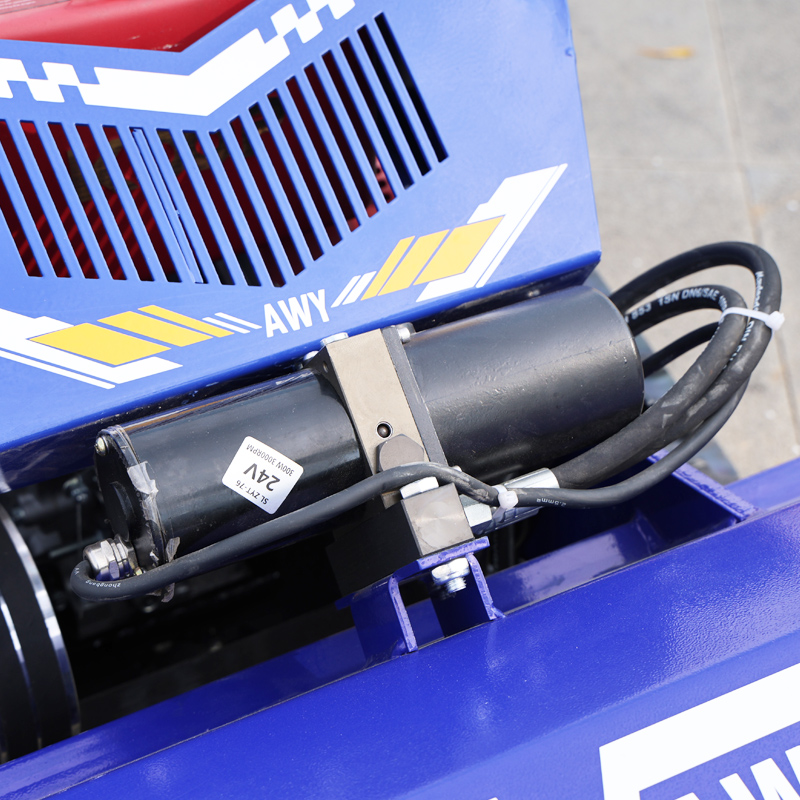

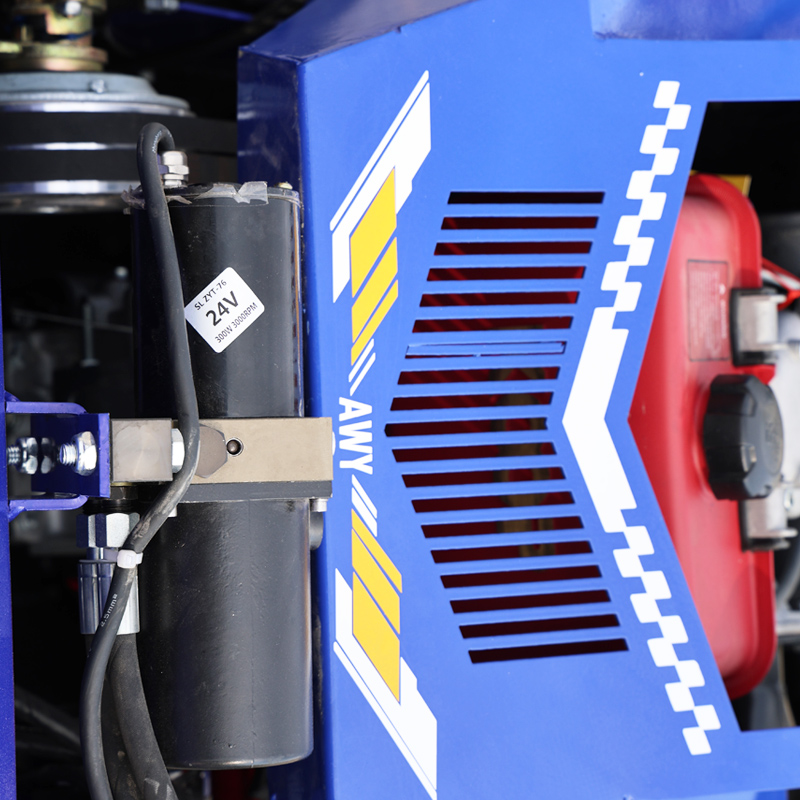

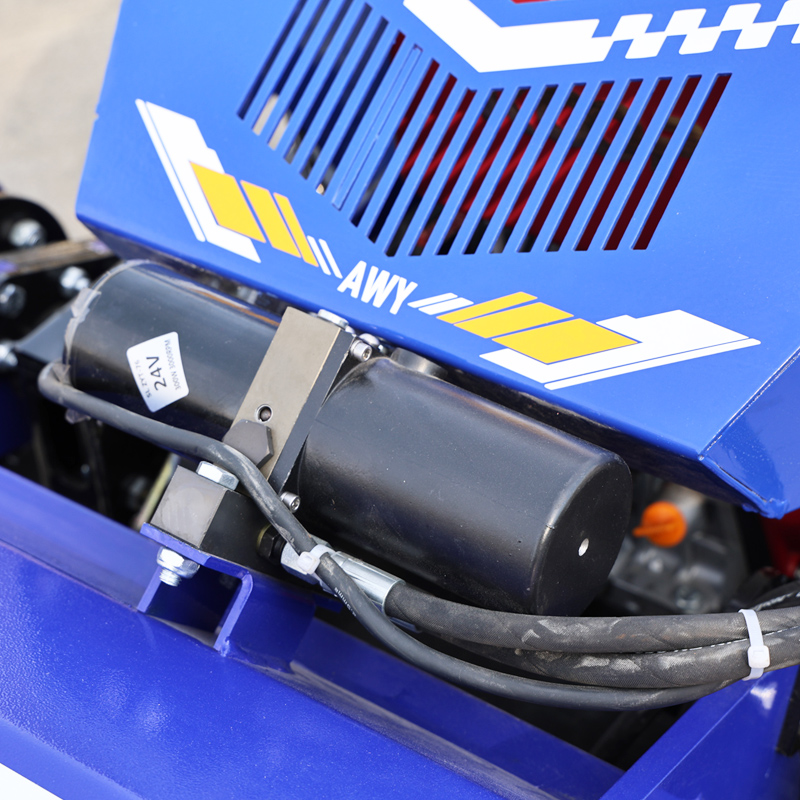

Hydraulic push rod system for better terrain adaptation
Suitable for brush and land reclamation applications
Gradeability up to 55°
Review the key specification differences below and choose the most suitable model for your inquiry.
| Specification Field | AWY-800SM | AWY-1000SM |
|---|---|---|

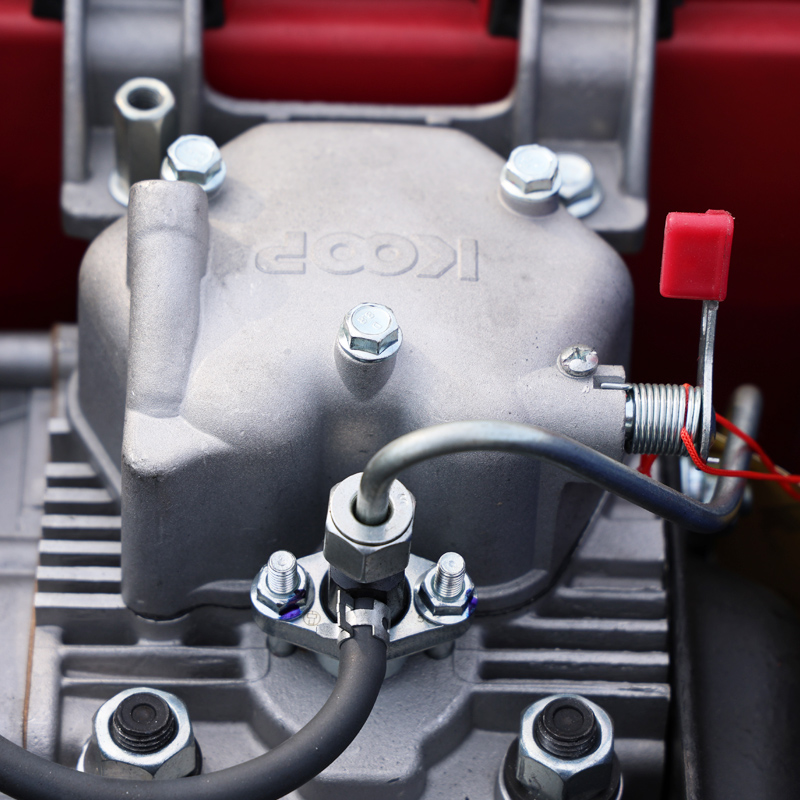

| Engine Type | Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F | Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F |
| Cutting Width | 80 cm | 100 cm |
| Cutting Height | 2 - 20 cm remote control adjustment | 2 - 20 cm remote control adjustment |
| Walking Motor | 850W Brushless Motor | 850W Brushless Motor |
| Machine Size | 1000 x 920 x 760 mm | 1650 x 1120 x 760 mm |
| Package Size | 1700 x 1040 x 920 mm | 1750 x 1240 x 920 mm |
| Machine Weight | 342 kg | 354 kg |
| Package Weight | 406 kg | 427 kg |
| Starting Method | Key start and stop | Key start and stop |
| Walking Speed | 3 - 5 km/h | 3 - 5 km/h |
| Gradeability | 55° | 55° |
| Power | Gasoline LONCIN 459CC / Diesel YARMAX YM195F | Gasoline LONCIN 459CC / Diesel YARMAX YM195F |
| Fuel Tank Capacity | 6.5 L / 5.5 L | 6.5 L / 5.5 L |
| Oil Capacity | 1.1 L / 1.65 L | 1.1 L / 1.65 L |
| Fuel Consumption | 1.2 L/h | 1.2 L/h |
| Track Width | 150 mm | 150 mm |
| Mowing Efficiency | 1500 m2/h | 1500 m2/h |
| Lifting Method | Remote control hydraulic lift | Remote control hydraulic lift |
| Knife Speed | 2500 - 3000 r/min | 2500 - 3000 r/min |

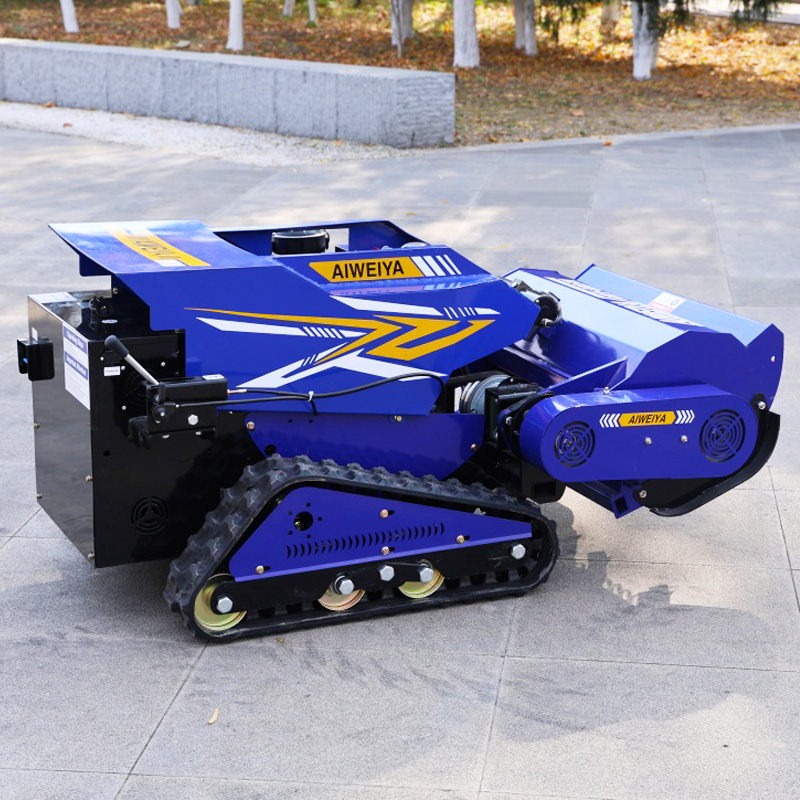

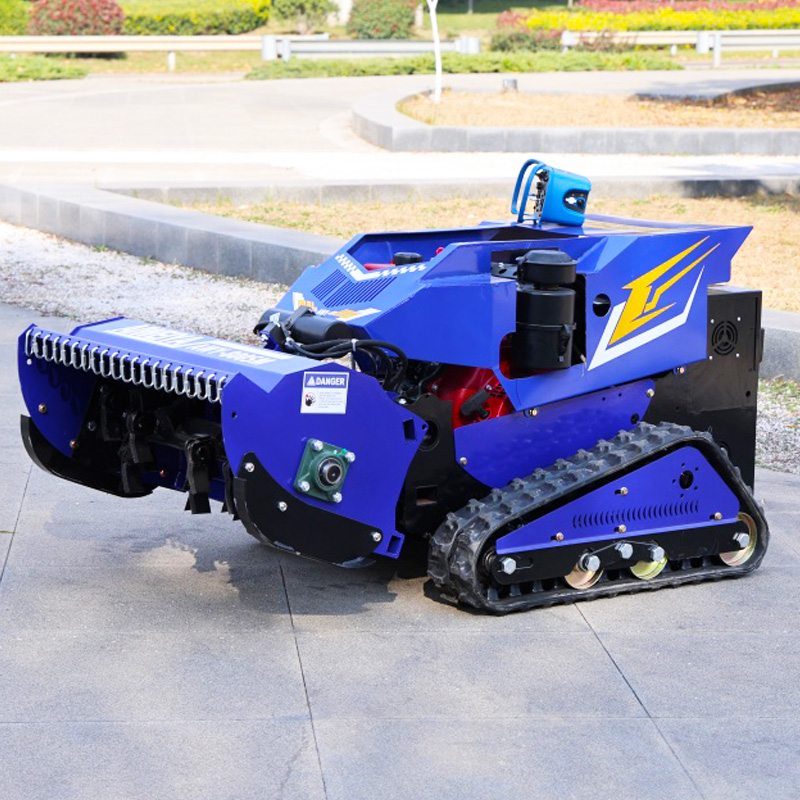

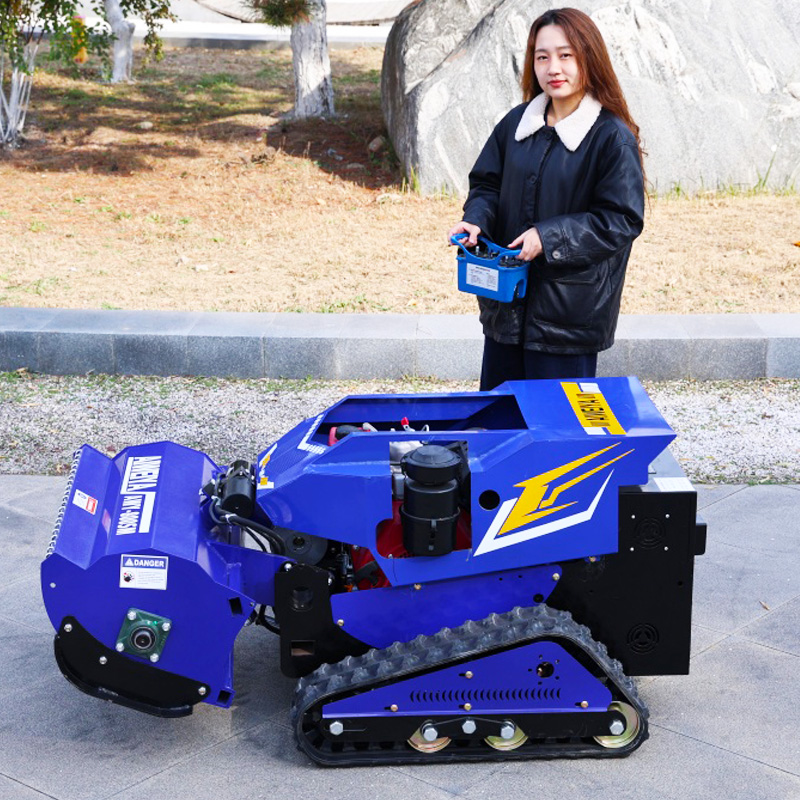

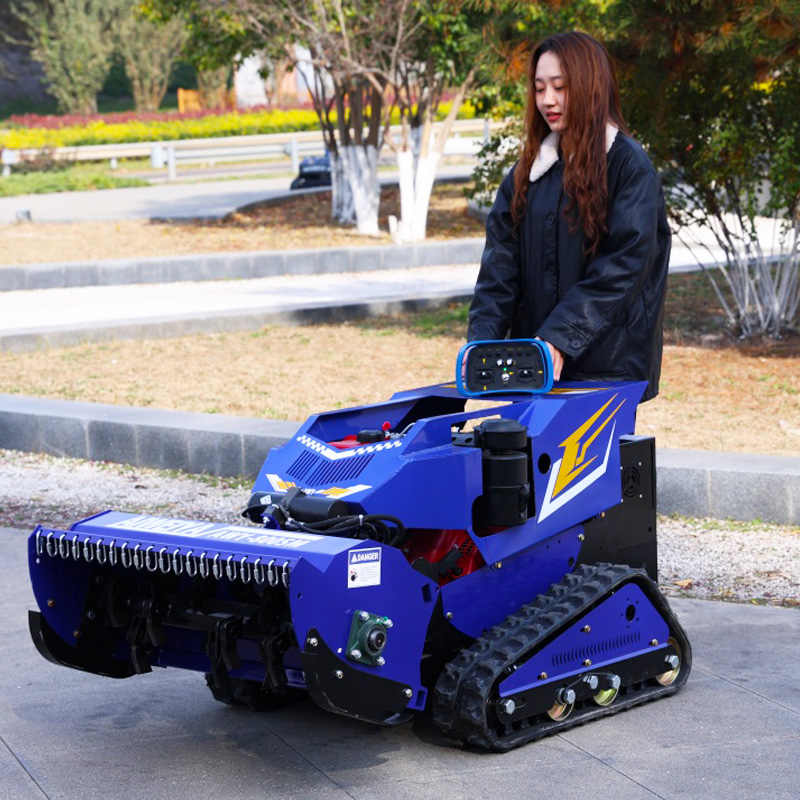

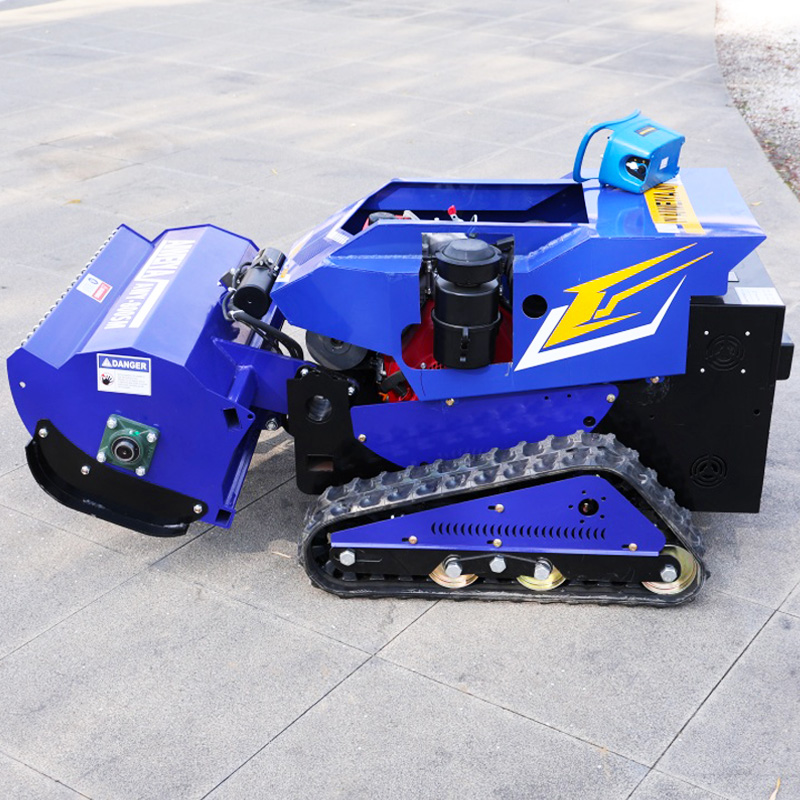

See the AWY-SM Series in real vegetation management and mowing applications.
Available engine or configuration options should be confirmed according to the selected model and order requirement.
Gasoline or diesel version
Project-based configuration adjustment
Branding customization
