The AWY-SM Robot Grass Cutter features a crawler chassis and a high-horsepower 4-stroke engine. Paired with brushless drive motors and a hydraulic lifting system, it ensures stable slope climbing and precise height adjustment.
The AWY-SM Robot Grass Cutter features a crawler chassis and a high-horsepower 4-stroke engine. Paired with brushless drive motors and a hydraulic lifting system, it ensures stable slope climbing and precise height adjustment.
Suitable for brush and land reclamation applications
Gradeability up to 55°
Gasoline and diesel engine options available
CE, EPA, and Euro 5 compliant
Review the key specification differences below and choose the most suitable model for your inquiry.
| Specification Field | AWY-800SM | AWY-1000SM |
|---|---|---|
| Engine Type | Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F | Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F |
| Cutting Width | 80 cm | 100 cm |
| Cutting Height | 2 - 20 cm remote control adjustment | 2 - 20 cm remote control adjustment |
| Walking Motor | 850W Brushless Motor | 850W Brushless Motor |
| Machine Size | 1000 x 920 x 760 mm | 1650 x 1120 x 760 mm |
| Package Size | 1700 x 1040 x 920 mm | 1750 x 1240 x 920 mm |
| Machine Weight | 342 kg | 354 kg |
| Package Weight | 406 kg | 427 kg |
| Starting Method | Key start and stop | Key start and stop |
| Walking Speed | 3 - 5 km/h | 3 - 5 km/h |
| Gradeability | 55° | 55° |
| Power | Gasoline LONCIN 459CC / Diesel YARMAX YM195F | Gasoline LONCIN 459CC / Diesel YARMAX YM195F |
| Fuel Tank Capacity | 6.5 L / 5.5 L | 6.5 L / 5.5 L |
| Oil Capacity | 1.1 L / 1.65 L | 1.1 L / 1.65 L |
| Fuel Consumption | 1.2 L/h | 1.2 L/h |
| Track Width | 150 mm | 150 mm |
| Mowing Efficiency | 1500 m2/h | 1500 m2/h |
| Lifting Method | Remote control hydraulic lift | Remote control hydraulic lift |
| Knife Speed | 2500 - 3000 r/min | 2500 - 3000 r/min |

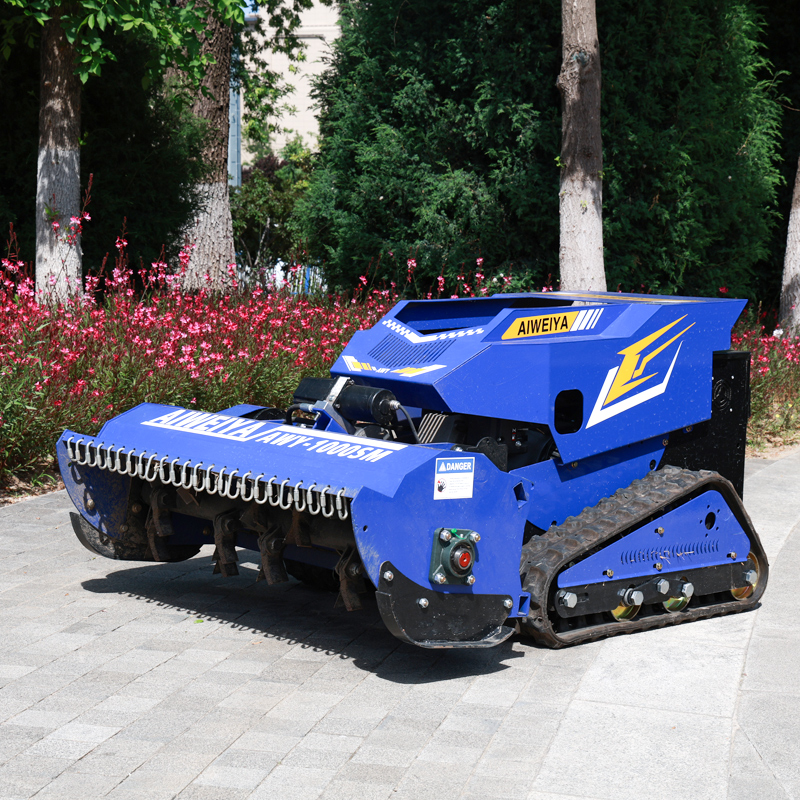

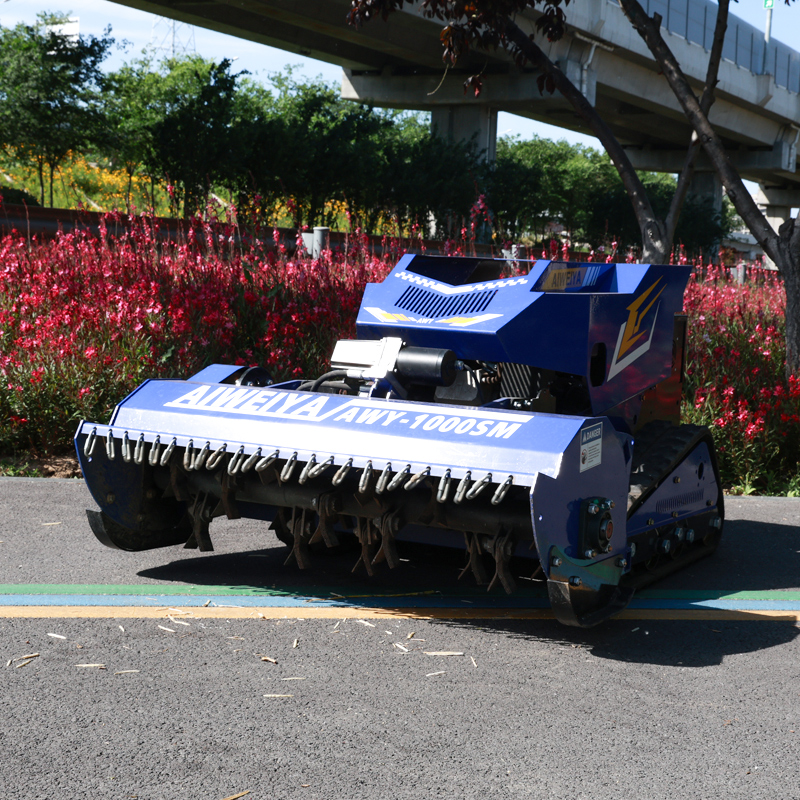

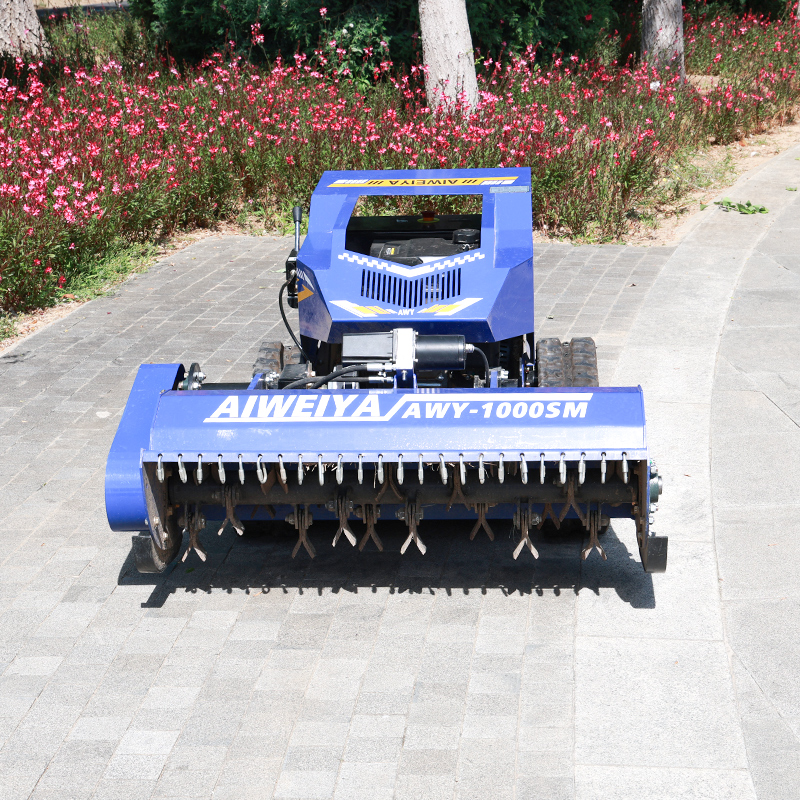

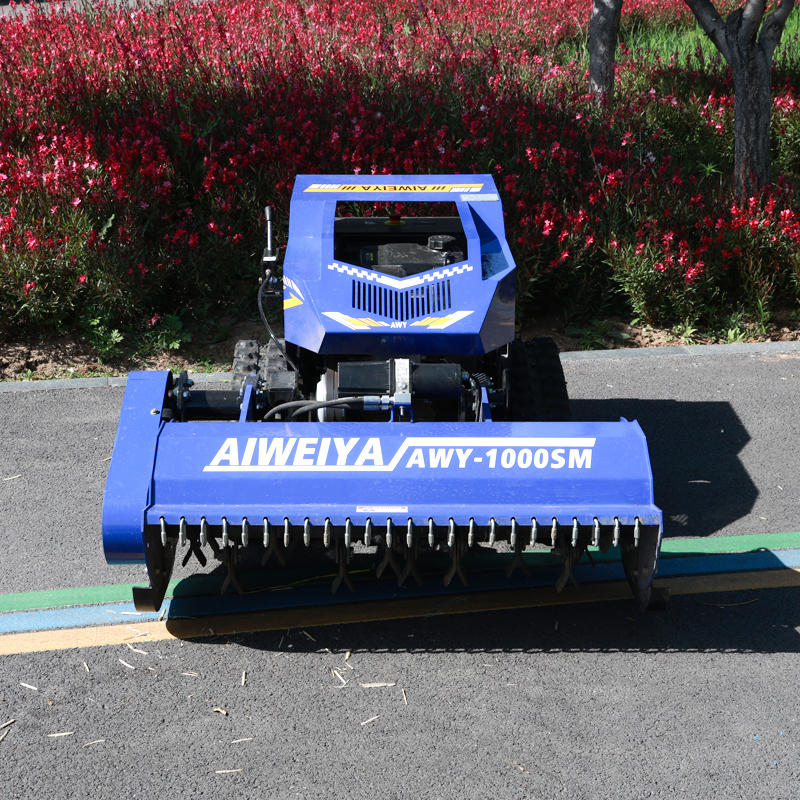

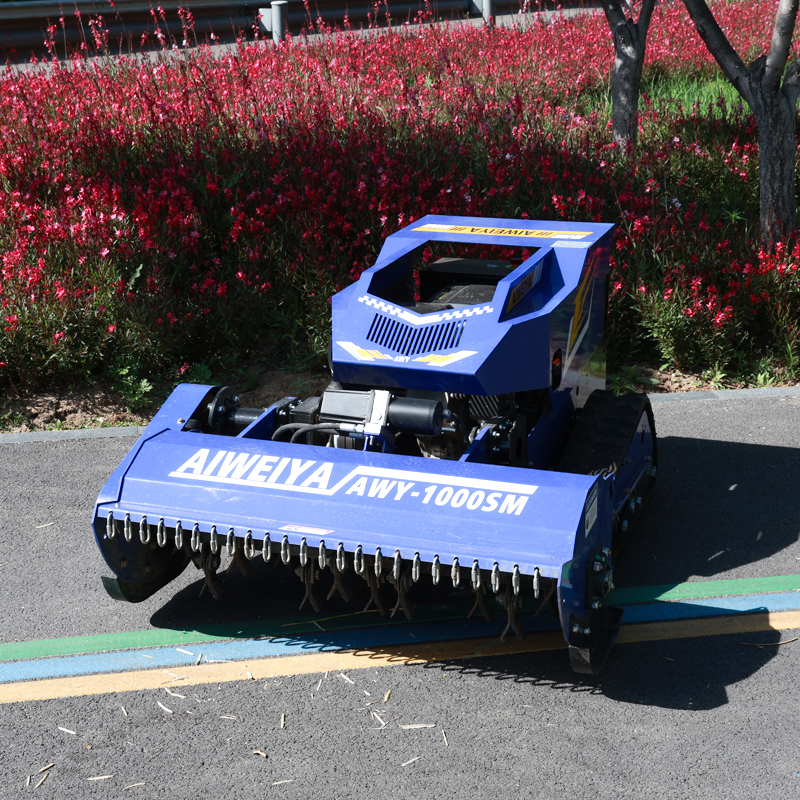

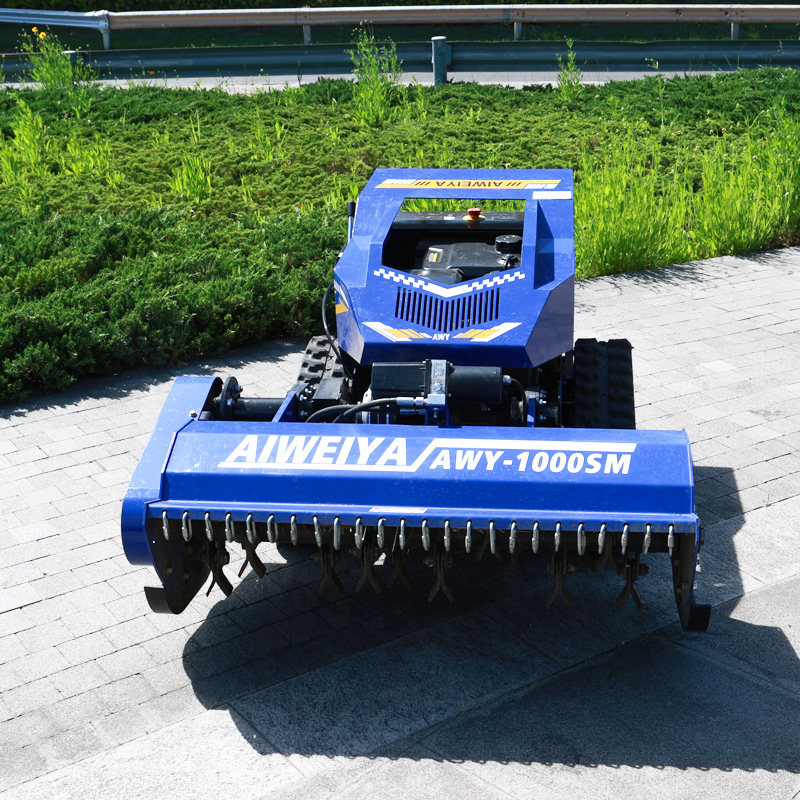

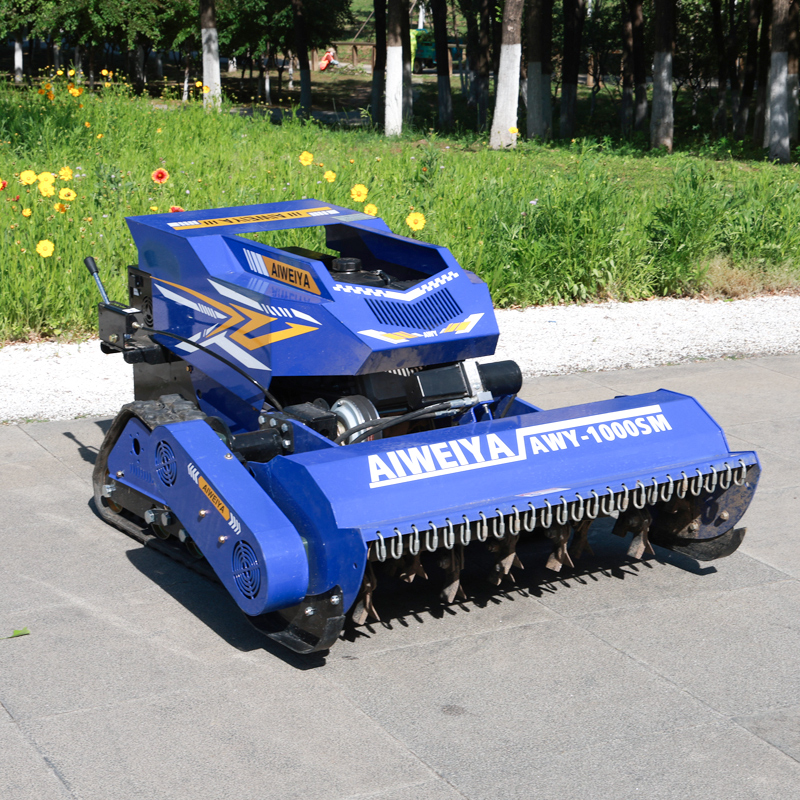

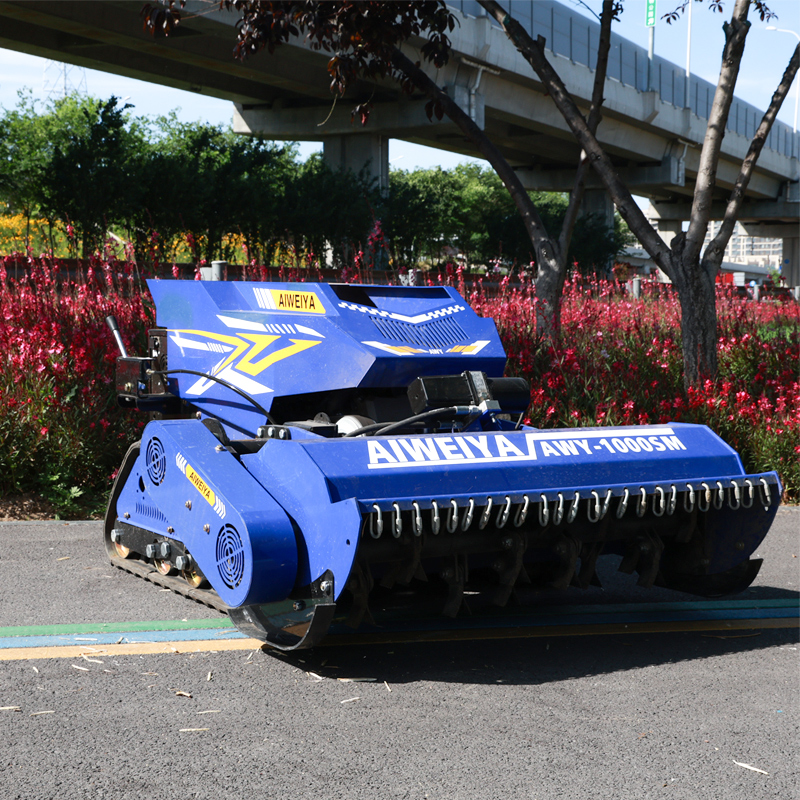

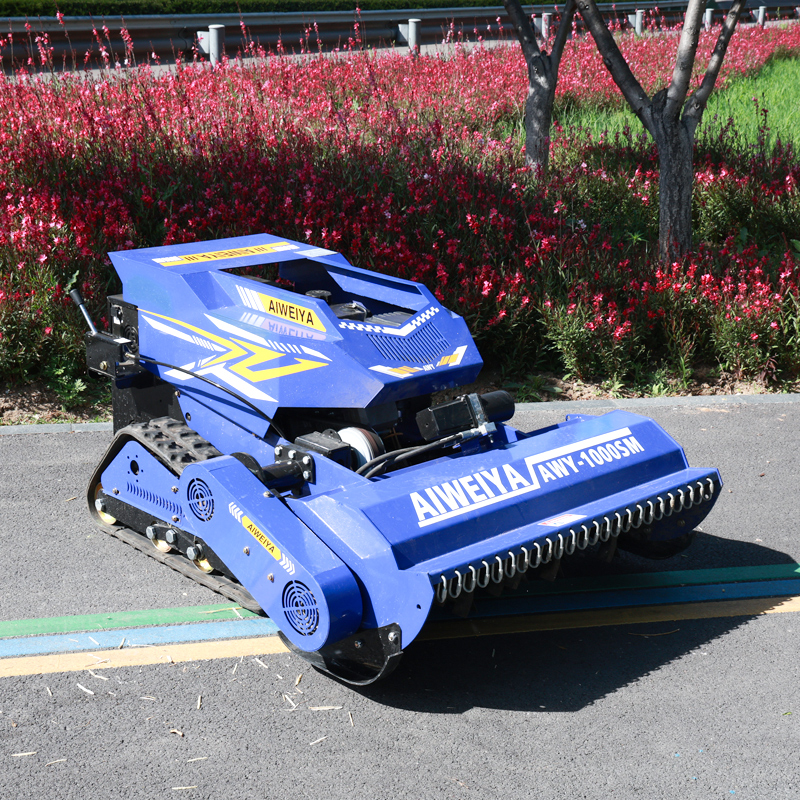

Review product structure, components and close-up details for this mower model.
See the AWY-SM in real vegetation management and mowing applications.
Available engine or configuration options should be confirmed according to the selected model and order requirement.
Gasoline or diesel version
Project-based configuration adjustment
Branding customization
