The AWY-1000SM is a 100cm diesel remote-controlled tracked flail mower developed for commercial grass maintenance and large-scale vegetation management, providing distributors, contractors, and project buyers with a wide-cut and highly mobile equipment solution.
The AWY-1000SM is a wide-cut remote-controlled flail mower developed for commercial vegetation management and professional grass-maintenance projects. It combines a YARMAX 195F diesel engine, 100cm cutting width, dual 850W brushless drive motors, and hydraulic lifting for applications where wider coverage and terrain capability are important.
100cm Wide Flail Cutting
Equipment Positioning for Large-Area Operations
Up to 55° Gradeability
Review the key specification differences below and choose the most suitable model for your inquiry.
| Specification Field | AWY-1000SM |
|---|---|
| Engine Type | Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F |
| Cutting Width | 100 cm |
| Cutting Height | 2 - 20 cm remote control adjustment |
| Walking Motor | 850W Brushless Motor |
| Machine Size | 1650 x 1120 x 760 mm |
| Package Size | 1750 x 1240 x 920 mm |
| Machine Weight | 354 kg |
| Package Weight | 427 kg |
| Starting Method | Key start and stop |
| Walking Speed | 3 - 5 km/h |
| Gradeability | 55° |
| Power | Gasoline LONCIN 459CC / Diesel YARMAX YM195F |
| Fuel Tank Capacity | 6.5 L / 5.5 L |
| Oil Capacity | 1.1 L / 1.65 L |
| Fuel Consumption | 1.2 L/h |
| Track Width | 150 mm |
| Mowing Efficiency | 1500 m2/h |
| Lifting Method | Remote control hydraulic lift |
| Knife Speed | 2500 - 3000 r/min |

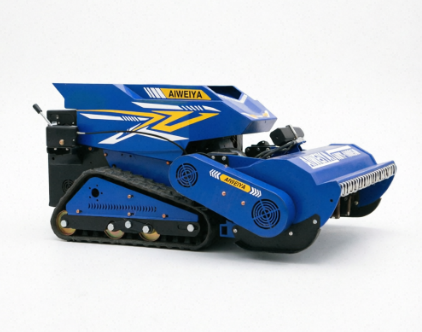

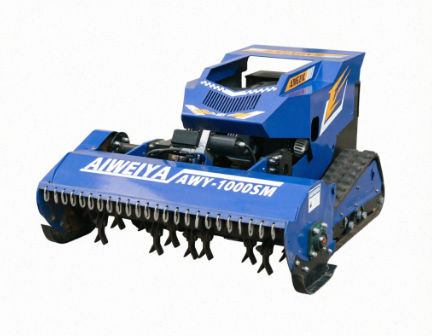

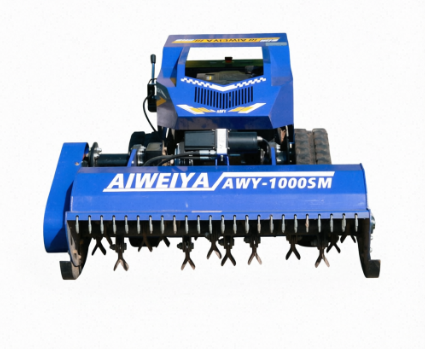

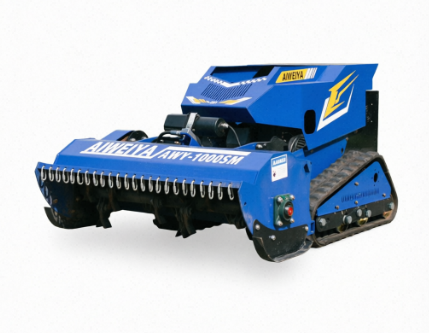

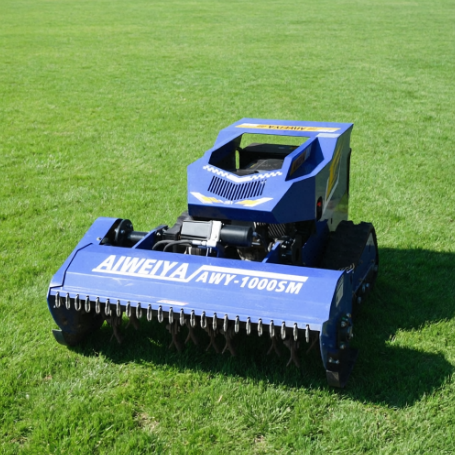

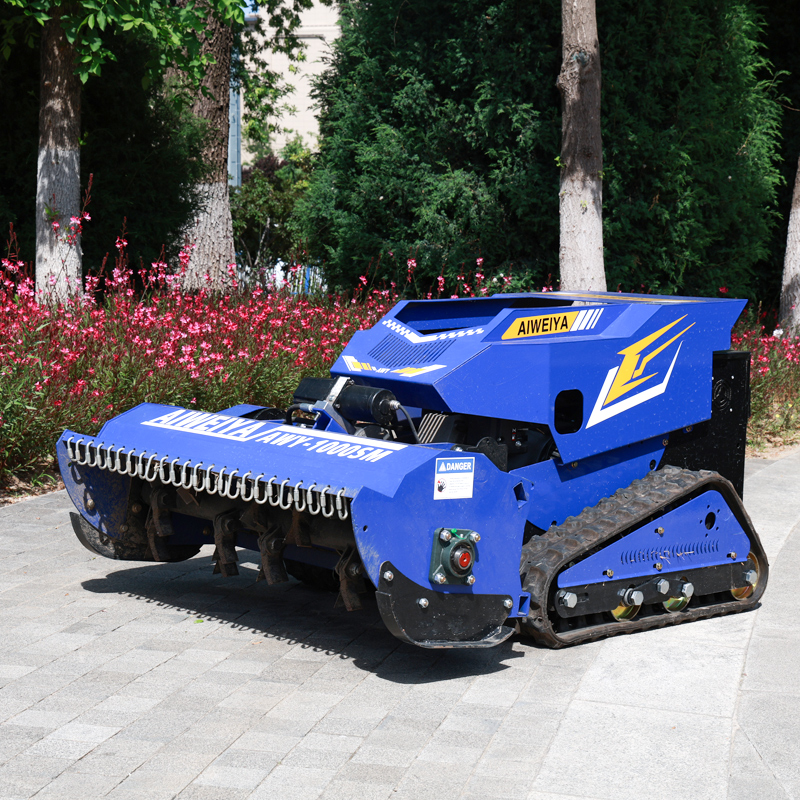

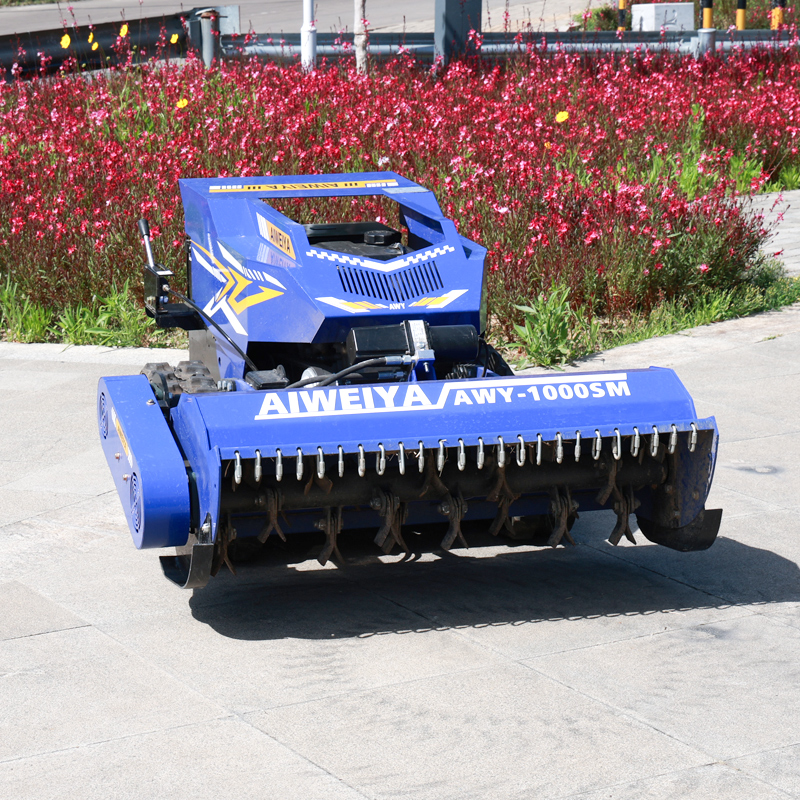

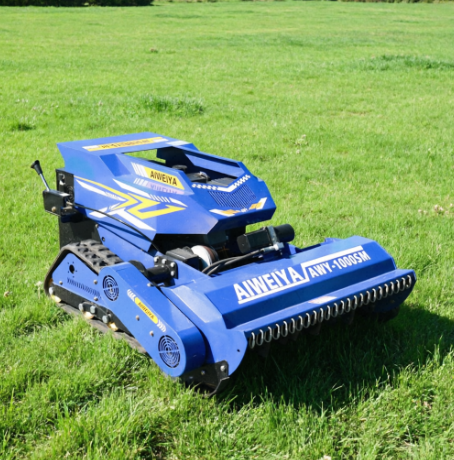

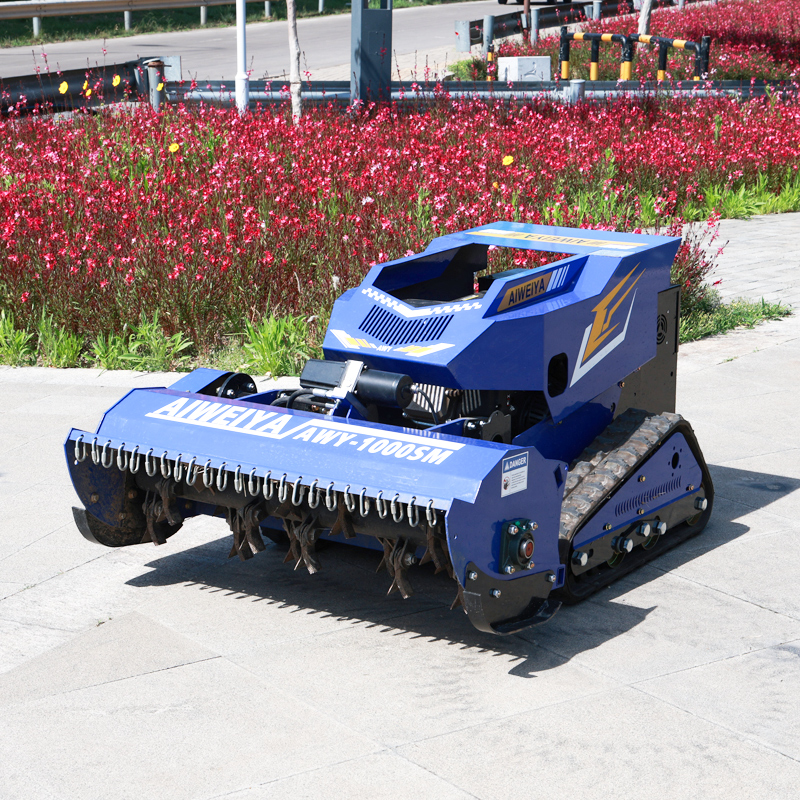

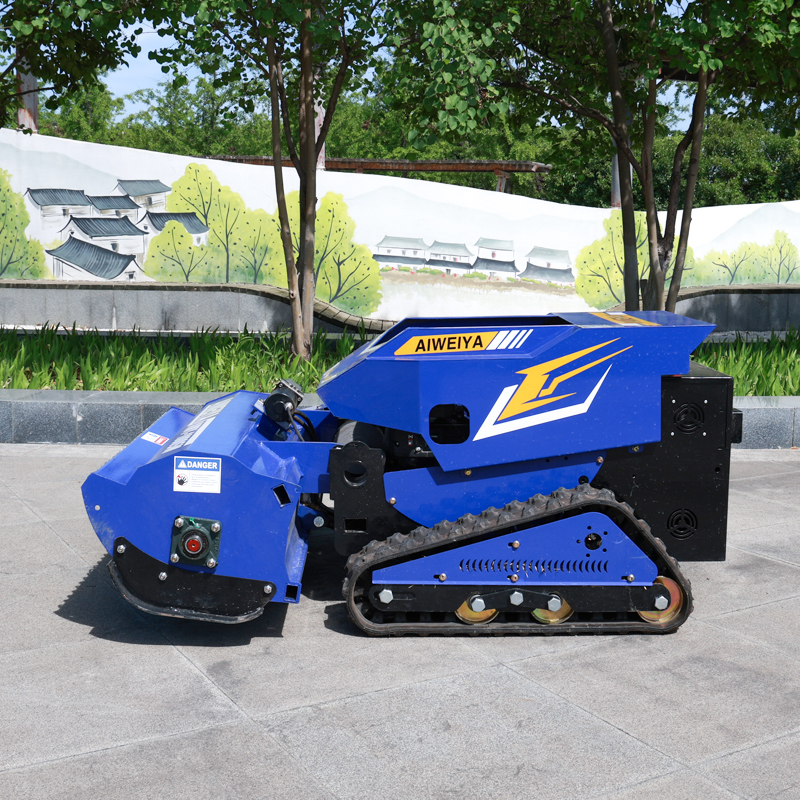

Review product structure, components and close-up details for this mower model.

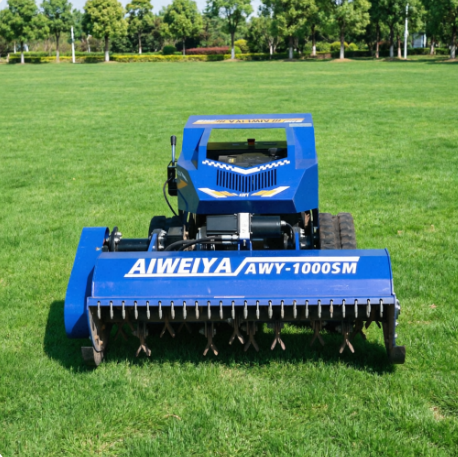

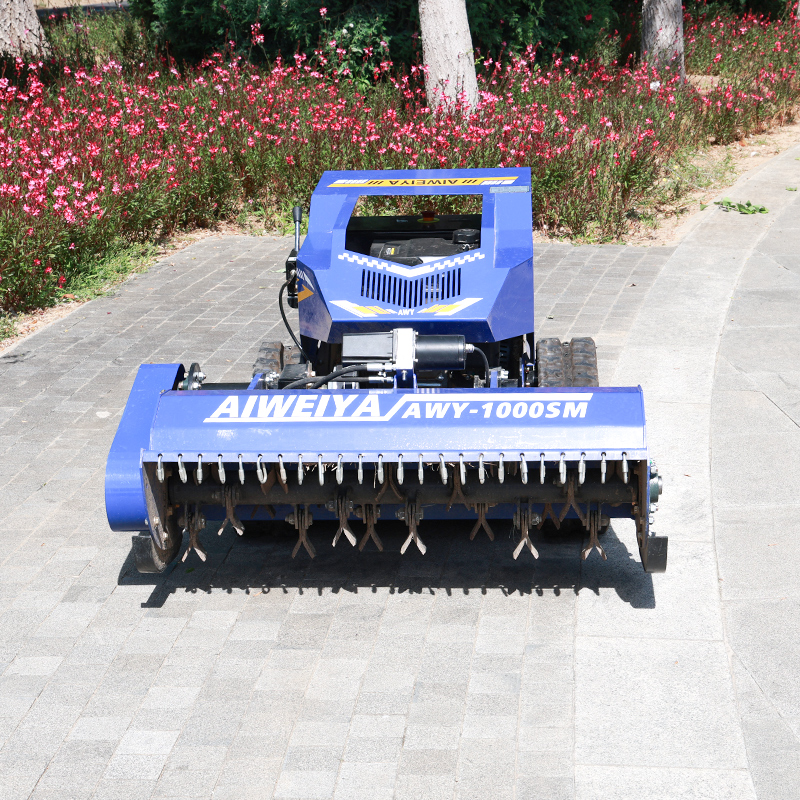

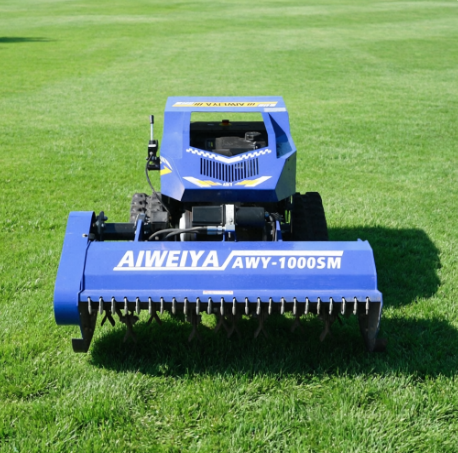

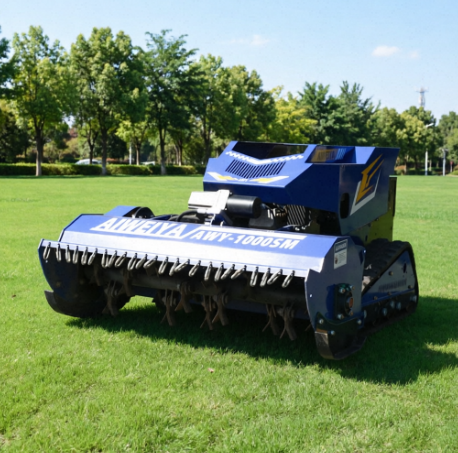

See the AWY-1000SM in real vegetation management and mowing applications.
Available engine or configuration options should be confirmed according to the selected model and order requirement.
Diesel power configuration
Different flail/blade configurations
Distributor-specific solutions
