Crawler Remote Control Mower

AWY-1000S Atv Flail Mower

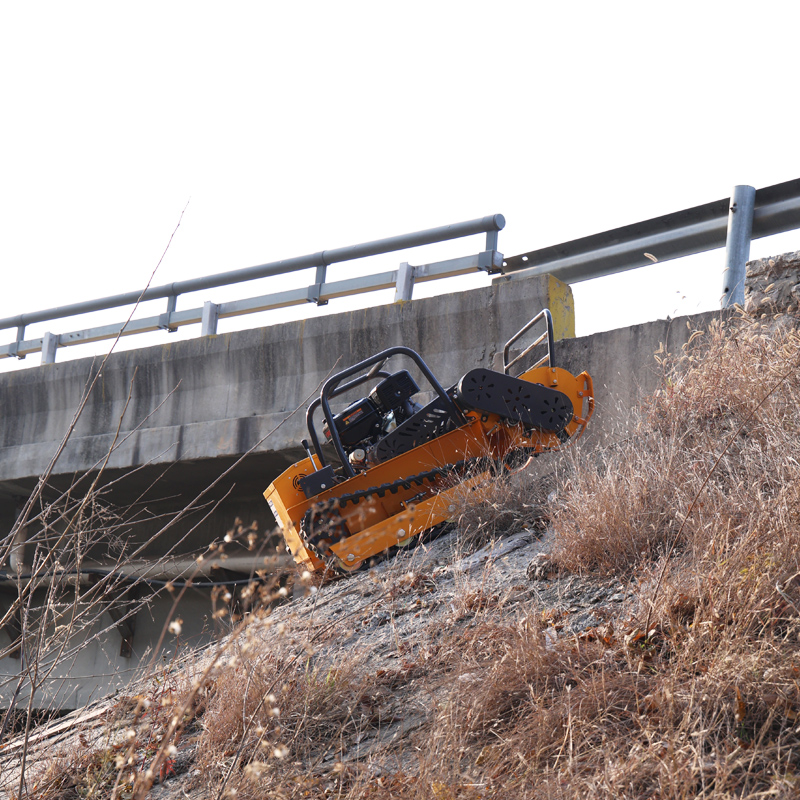

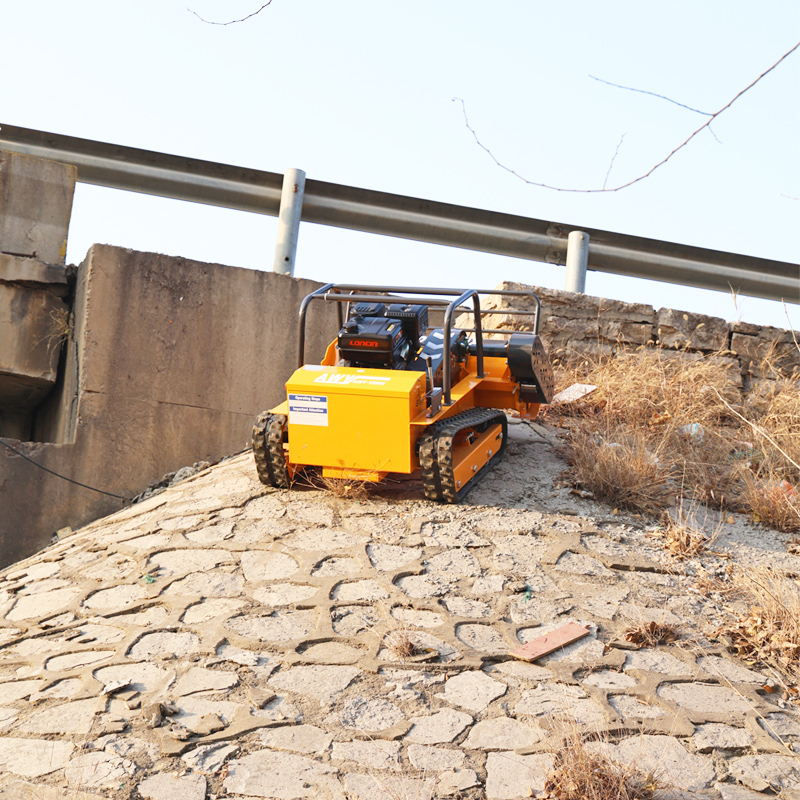

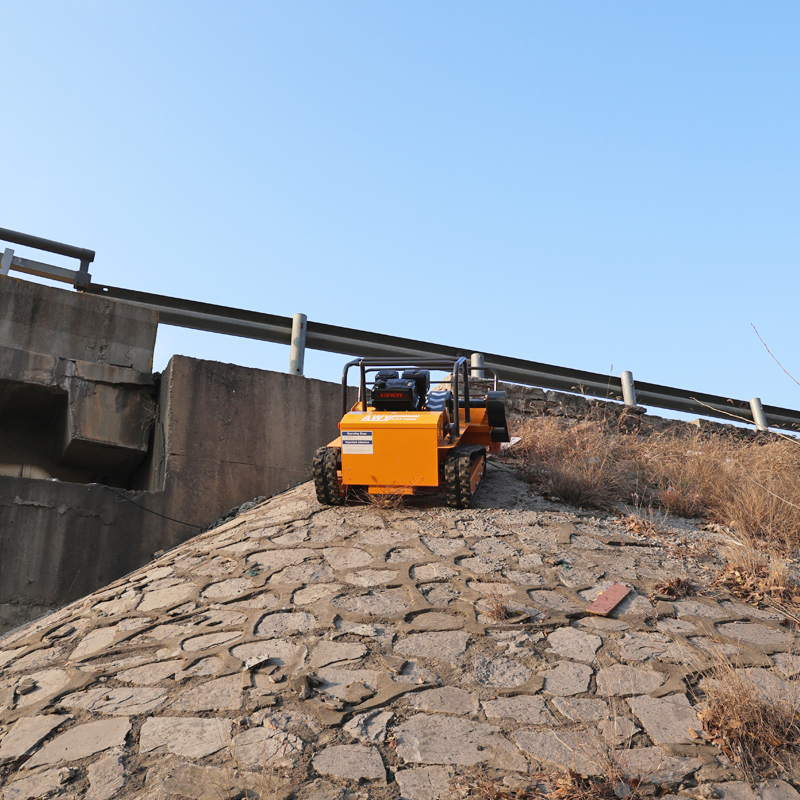

The AWY-1000S is an industrial-grade RC mulcher designed for steep slopes and wilderness. Featuring a 100cm cutting width, 55° slope-climbing capability, and 500m remote control, it safely and efficiently conquers complex terrains.

Select Available Model Specification
Cutting Width
100 cm
Machine Weight
375 kg
Gradeability
55°
Mowing Efficiency
1500 m2/h
Home Gardens Agricultural Orchards Public Facilities
Contact via WhatsApp (+86 19743325730)
Direct Factory Quotation Support
Use this page to compare available models, review actual images and send product inquiries directly to our sales team.
Overview Specifications Details Machine Gallery Configuration FAQ Inquiry
Product Overview

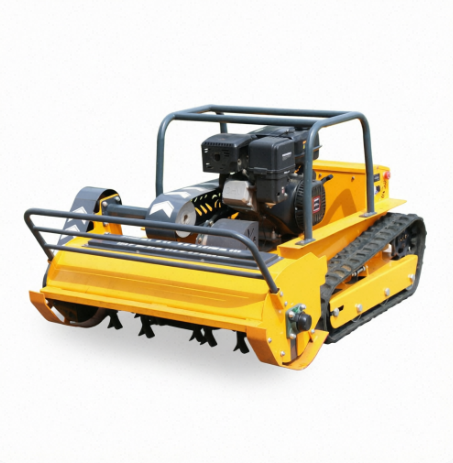

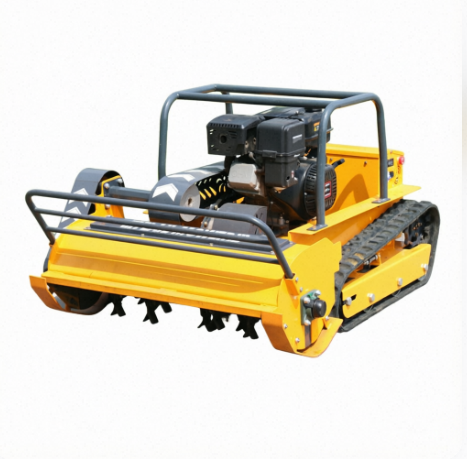

AWY-1000S Atv Flail Mower

The AWY-1000S is an industrial-grade RC mulcher specifically designed for complex terrains. Featuring a 100cm cutting width and a 55° slope-climbing capability, it is powered by dual 850W brushless motors and a 2000N lifting motor. Supporting an ultra-long 500m remote control range, it is ideal for orchards, hillsides, solar farms, and more, ensuring safe and highly efficient operations.

AWY-1000S Atv Flail Mower overview image

Key Advantage 1

Fully Self-Developed Core System

Key Advantage 2

Superior Power Combination

Key Advantage 3

Industrial-Grade Remote Experience

Model Comparison

Compare Available AWY-1000S Models

Review the key specification differences below and choose the most suitable model for your inquiry.

AWY-1000S
Crawler Remote Control Mower
  • Cutting Width 100 cm
  • Mowing Efficiency 1500 m2/h
  • Machine Weight 375 kg
  • Engine Type Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F EPA
  • Gradeability 55°
Technical Data

Technical Specifications

Maintain this specification table from the WordPress product backend.
Specification Field AWY-1000S

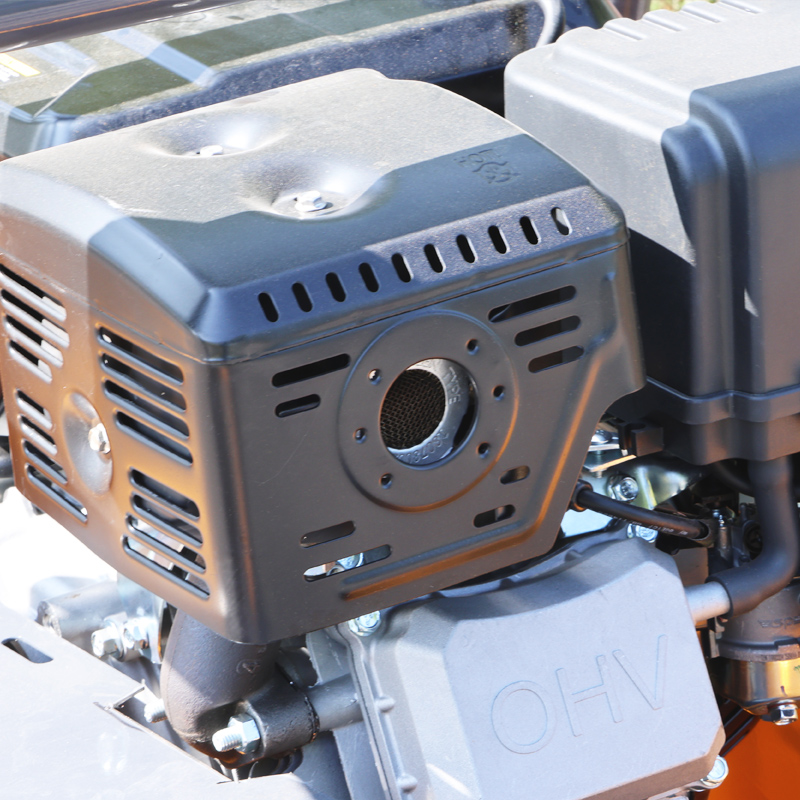

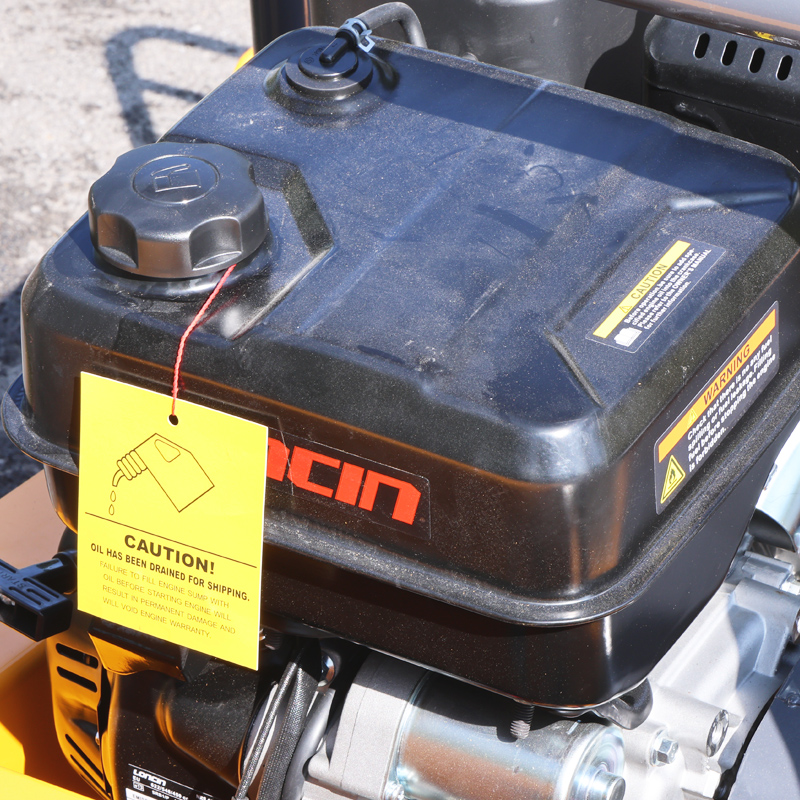

Engine Type Gasoline LONCIN 459CC EPA Euro V / Diesel YARMAX 195F EPA
Cutting Width 100 cm
Cutting Height 2 - 20 cm, manual adjustment
Walking Motor 850W Brushless Motor
Machine Size 1300 x 1200 x 800 mm
Package Size 1595 x 1270 x 1035 mm
Machine Weight 375 kg
Package Weight 410 kg
Starting Method Remote start and stop
Walking Speed 3 - 5 km/h
Gradeability 55°
Fuel Consumption 1.2 L/h
Track Width 150 mm
Mowing Efficiency 1500 m2/h
Lifting Method Remote control lift
Knife Speed 2500 - 3000 r/min
Product Details

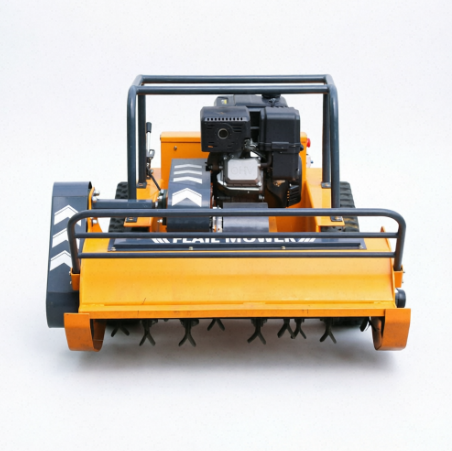

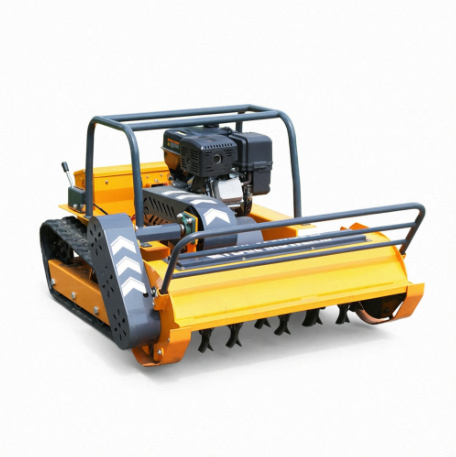

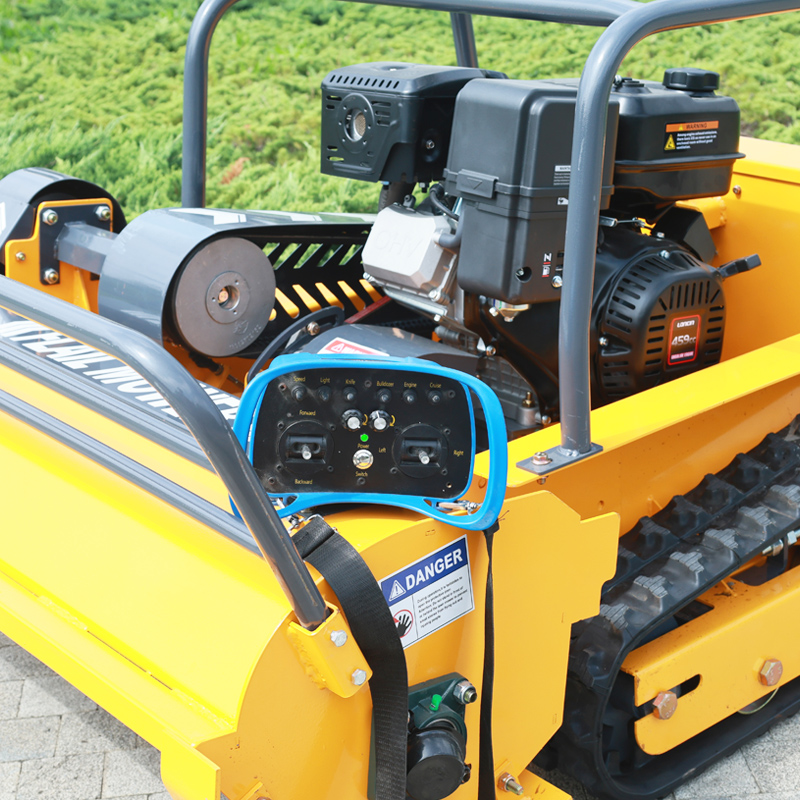

Machine Detail Images

Review product structure, components and close-up details for this mower model.

×
Configuration Discussion

Discuss Matchable Configurations for Your Order

Available engine or configuration options should be confirmed according to the selected model and order requirement.

Optional Item

Engine Type

Optional Item

Cutting Width

Optional Item

Starting Method

Request a Quote
AWY-1000S Atv Flail Mower configuration image
Parameter & Configuration Match Support Product Image Review Before Inquiry Factory Direct Communication
Product information supplied from the current backend module
Common Questions

Frequently Asked Questions

Review current product questions and answers for AWY-1000S.

Will the machine slip on slopes?
No. It is equipped with an electronic parking brake and an anti-slip drive system. The 15cm wide tracks are reinforced with steel wire for exceptional traction, ensuring stable operation even on 55° steep slopes.
What is the blade speed, and how is the mulching effect?

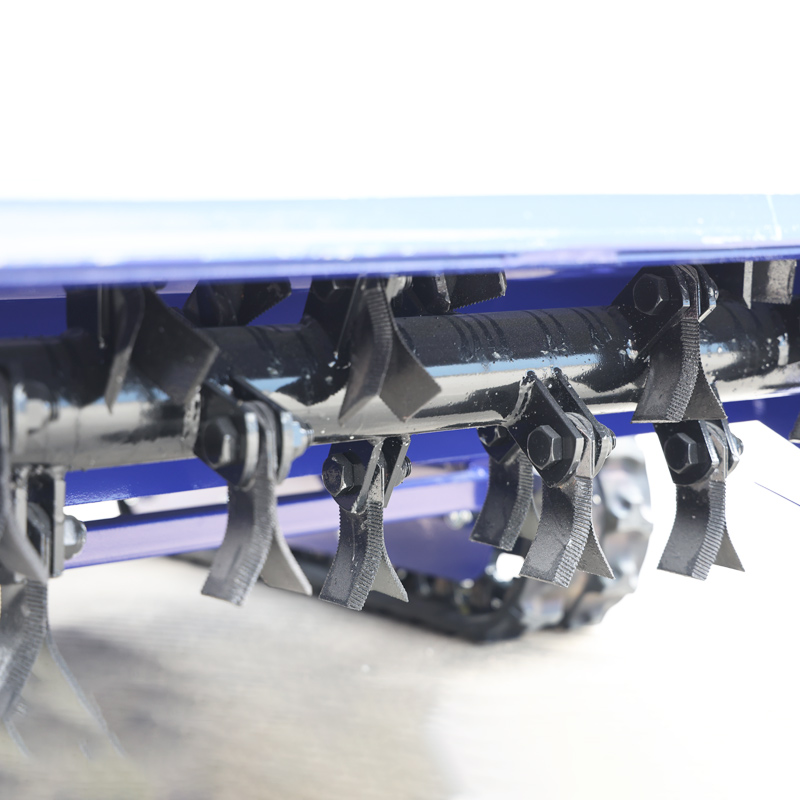

The blades rotate at 2500-3000 RPM. Using manganese steel serrated blades, it delivers a fine and even mulching effect, perfect for all types of weeds and shrubs.

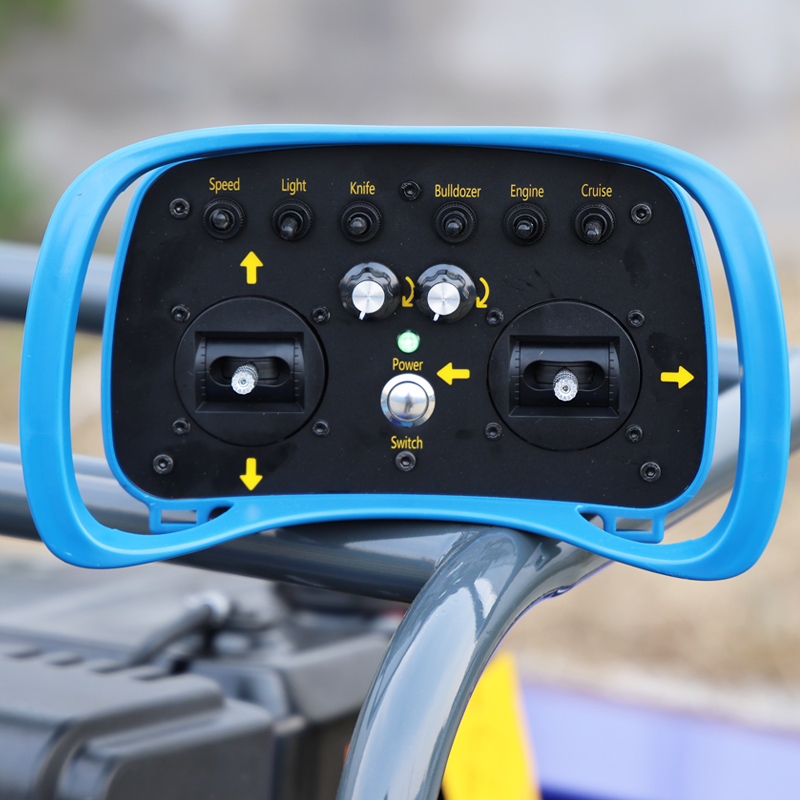

Does it support remote start and stop?

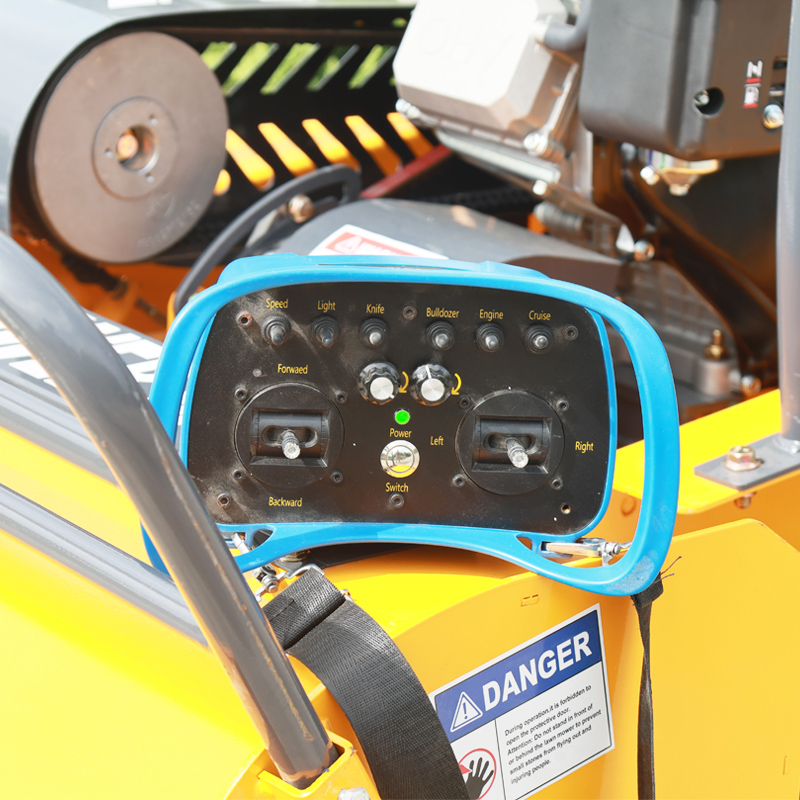

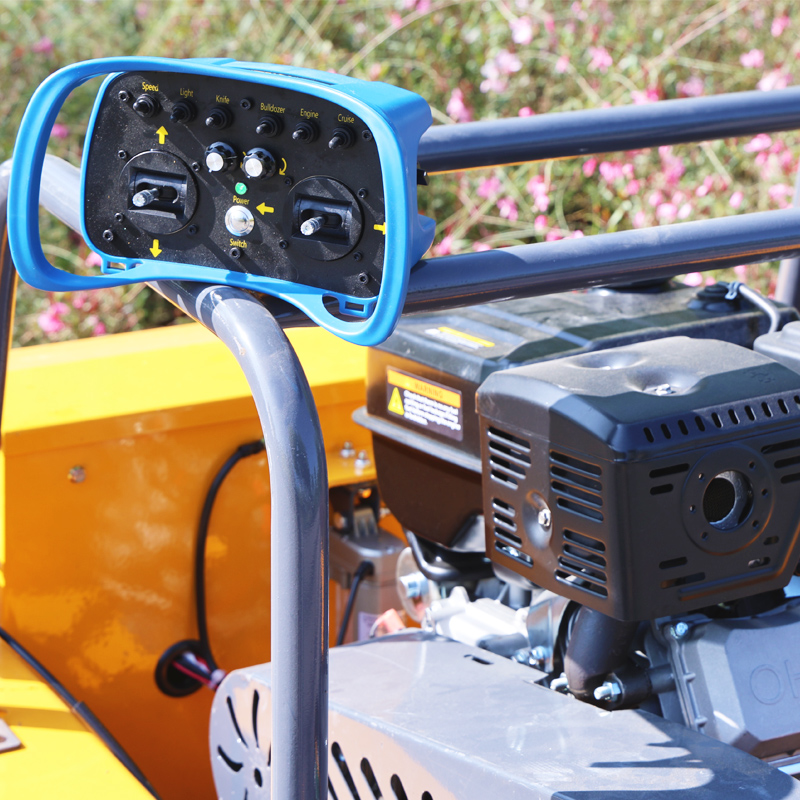

Yes. The gasoline version supports one-touch start/stop via the remote. The diesel version requires a key or pull start, but all operations can still be controlled remotely once running.
